.085 in. (2.16mm)
Density
Miniature Ribbon
IDC
Metal Shell

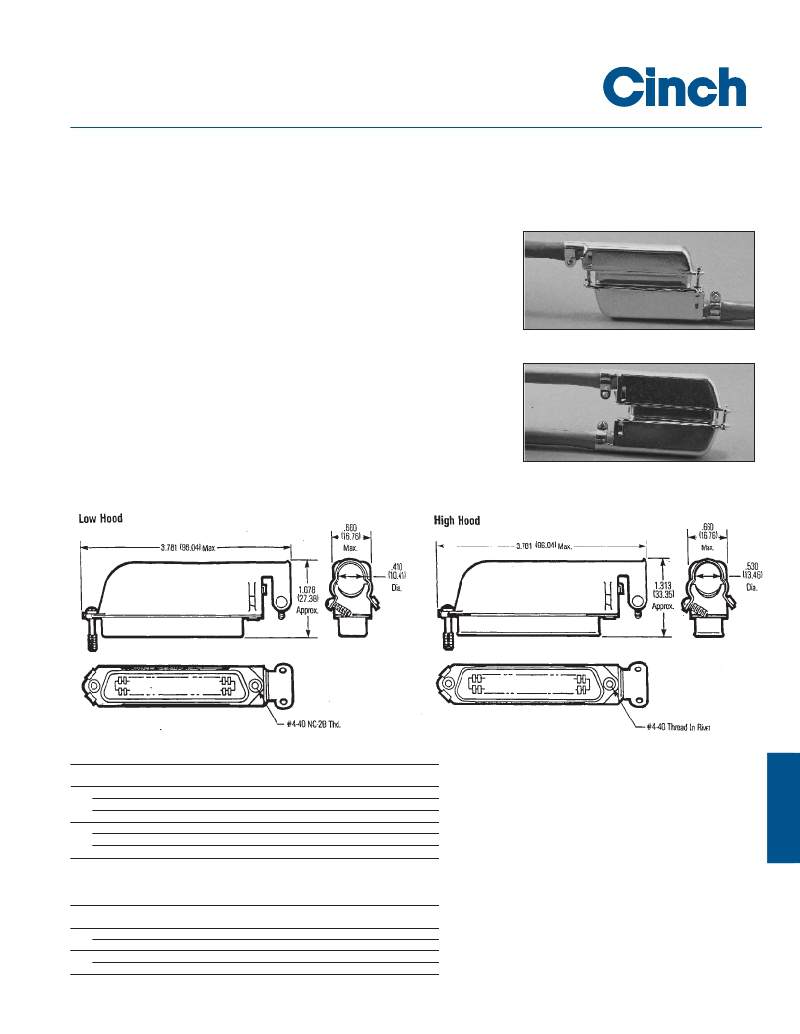

90° (Standard) / 270° (Reverse) End-Entry Cable
End-Entry connectors, available in 50 position size only, include a hood and integral cable clamp for cable exit from the
end of the connector.
? The standard-orientation plug has the cable clamp on the position 1/26 end,
and the standard-orientation socket has the clamp on the position 25/50 end.
? Cables may be extended end-to-end (i.e., “running cable”) by mating standard-
orientation plugs and sockets, or “doubled back” by mating a standard-
orientation connector with a reverse-orientation mate.
? Cables may exit either direction on a cable-to-panel application by choosing
standard or reverse-orientation, depending on the desired direction of
Running Cable Application
cable exit.
? Include screw that is 5/8" long, suitable for locking directly to the body of
another connector. For locking to connectors panel-mounted with screwlock
hardware, shorter screws are required. See page 6-51 for these and other
accessories, such as dust covers.
Double-Back Cable Application
Ordering Information, End-Entry
Standard (90°) Orientation
Solid Wire
Mount
Size
Commercial
30Au/Ni
High (Standard) Hood
Low-Profile Hood
SuperShield, 4-40 Screw
High (Standard) Hood
Low-Profile Hood
SuperShield, 4-40 Screw
50
50
50
50
50
50
77-72500
77-72500-1
77-72500-SS
77-82500
77-82500-1
77-82500-SS
77-72500A
77-72500-1A
77-72500-SSA
77-82500A
77-82500-1A
77-82500-SSA
6
Reverse (270°) Orientation
Solid Wire
Mount
High (Standard) Hood
Low-Profile Hood
High (Standard) Hood
Low-Profile Hood
Size
50
50
50
50
Commercial
77-72500-270
77-72500-271
77-82500-270
77-82500-271
30Au/Ni
77-72500-270A
77-72500-271A
77-82500-270A
77-82500-271A
6-21
Call Toll Free: 1 (800) 323-9612
